AUTOMATIC PRODUCTION LINE OF ELECTRONIC PRODUCTS

Soldering Machine

There are different soldering robot model for option, 4 axis, 5 axis, 2 heads, with flowing line and so on

Soldering Machine Book Now
Model TR380C
Trace (X/Y/Z/R) mm 500*350*100 330°
AXIS Axle:5 axle+ tin solder
Loading 10Kg
Repeat Accuracy ±0.02mmm
Operate speed (X/Y/Z/R) 800mm/s R:180°/s
Temperature 180°C-480°C
System Dedicated control system + torque servo motor screw
Solder Wire Dia 0.6-1.2mm (customized)
Min tin length 0.1mm
Working environment O-40C, humidity 20%-95% (non-condensing)
Machine size (W*D*H) 750*580*850mm
Weight 95Kg
  • 1. Dua-working stations, more efficiency.
  • 2. CCD visual function, Mark point positioning, automatic correction of fixture and product offset Repeat positioning accuracy of 0.02mm.
  • 3. Flexible: auto feeding tin, can be adjusted easy

Soldering machine (high precision)

Application : TAB, TCP soldering. and FPC, FFC and PCB soldering High speed cable, QSFP, QSFP+, MINI SAS, high precision cable

Soldering Machine(high precision) Book Now
Model TR301
Pressure of indenter 0.02-0.8Mpa Adjustable pressure accuracy
hold time 1-100S
each piece of warm-up time 1-2S/Segment
working Size 150*200mm
working pressure 0.4-0.8 8Mpa
Temperature rang 0°-450°
Temperature accuracy ± 3°C
Temperature, the number and scope Of Section 8 (including starting Separator temperature)
Working Efficiency 400-600pcs/hour
Working environment O-40°C, humidity 20%-95% (non-condensing)
Machine size 400mm (L) x450mm (W) x51Omm (H)
Weight 85Kg
  • 1. High definition CCD alignment position.
  • 2. High precision soldering temperature adjustment.
  • 3. Microcomputer control system used to keep the equipment stability.

Pulse Soldering machine (double side soldering)

Application : Iphone connector, Type C connector, HDMI connector, Type C cable, and other dual-side soldering to PCB

Pulse Soldering machine (double side soldering) Book Now
Model TR501
Pressure of indenter 0.02-0.8Mpa Adjustable pressure accuracy
hold time 7-35s
each piece of warm-up time 1-2s/Segment
identer Size Max width 100mm
working pressure 0.4-0.8 8Mpa
Temperature rang 0°- 500°
lock wattage 3000W
Temperature, the number and scope Of Section 4 (including starting / Separator temperature)
Working Efficiency 400-700pcs/hour , depend on product
Working environment O-40°C, humidity 20%-95% (non-condensing)
Machine size 400mm (L) x450mm (W) x51Omm (H)
Weight 135Kg
  • 1. Dual side soldering.
  • 2. High precision soldering temperature adjustment.
  • 3. Microcomputer control system used to keep the equipment stability.

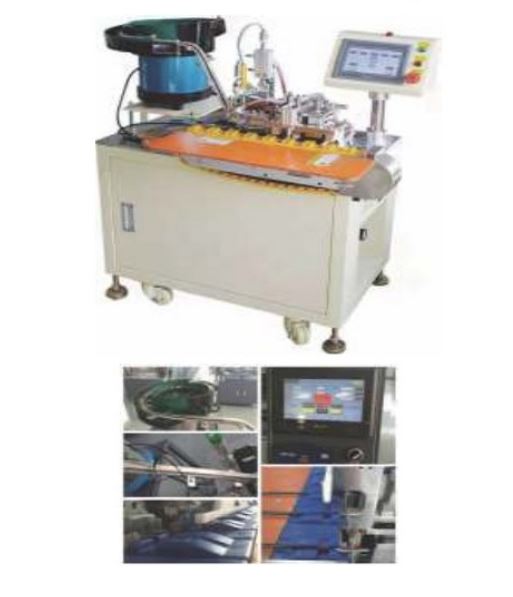

USB Stripping and Soldering Machine

Full automatic cutting stripping soldering for USB 2.0, Micro USB cable, type C 2.0 cable, i-phone cable data cable and so on

USB Stripping and Soldering Machine Book Now

Model TR-U100
Into the main pressure 5-7kg/c
Motor Power 220V 0.2 Kw
Control Power 0.15 Kw
Total Wattage 0.5 Kw
Temperature Control Thermostatic (Zones)
Soldering Angle 90°
Inner Stripping Length 2-20mm
Working Voltage 220V
Working Efficiency 600-900pcs/hour
Machine Dimensions 0.96x0.62x1.1M
Weight 150Kg
  • 1. High efficiency
  • 2. High Yield
  • 3.Reduce production cost

HDMI Cable Soldering Machine

High frequency soldering machine special for HDMI cable, USB 3.0, USB 3.1cable

Pulse Soldering machine (double side soldering) Book Now

Technical Index Tech-Parameters
Soldering knife customized
Weight 15KG
Power Output 1.8KW
Working Voltage 220V AC 50-60HZ
Machine Dimensions(L*W*H) 45*32*25cm
Working environment 10-60°C, humidity 40%-90%
Temperature rang 0°- 500°
Working Efficiency 1000-1300pcs/hour
Packing size 560*350*400mm

Ultrasonic Welding Machine

There are different wattage model for option, 2000w, 3000w, 4000w, 6000w, spot welding model, plastic welding model and so on.

Ultrasonic Welding Machine Book Now

Parameters Name Parameters Datas
Output power 5000W
Frequency 20K Hz
Input voltage 220V
Horn stroke 30MM
Control method MCU
Oscillation time TIME O.3-5s
Air pressure 0.5KG
Welding area 1MM2-30MM2
Electric box size 400*290*130MM
Machine size size 500*200*230MM
Net weight 51KG
Warranty Machine 1 year
